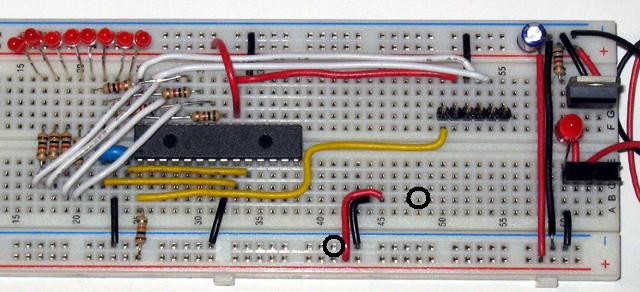

Cut and strip a short piece of black wire. Insert the wire into the circled holes.

---

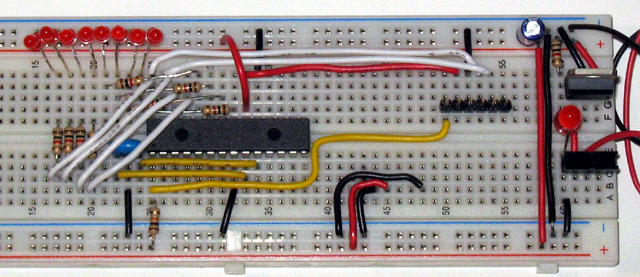

When it is completed it should look like this:
