Introduction to PIC programming.
Flashing Light
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11

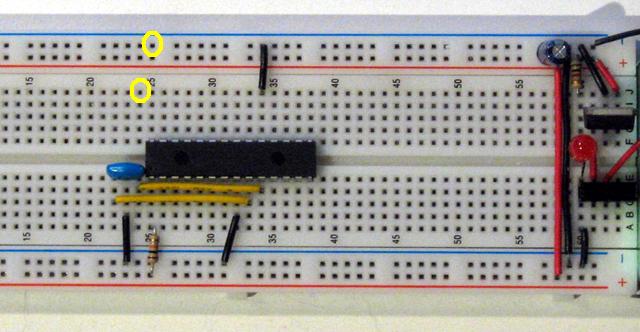

Locate a LED. Insert it into the circled holes. Be sure that the flat side of the LED is closest to the wire inserted into the ground buss. On new LEDs the shorter wire will be close to the LED flat.

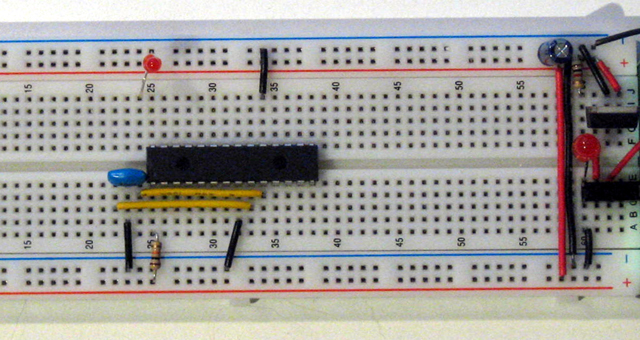

When it is completed it should look like this:
