Chapter 1 Page 6
Introduction to PIC programming.
Flashing Light
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11

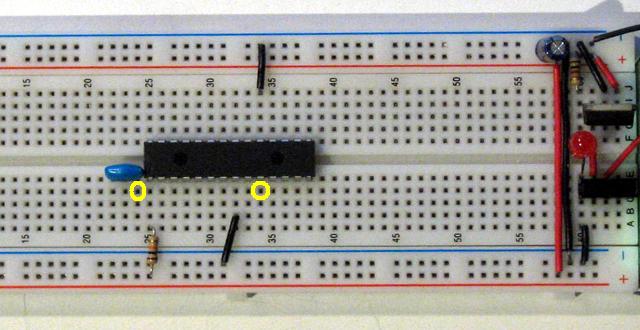

Cut and strip a piece of wire. Insert it into the circled holes. Be sure to insert the wire into a hole in column 34.

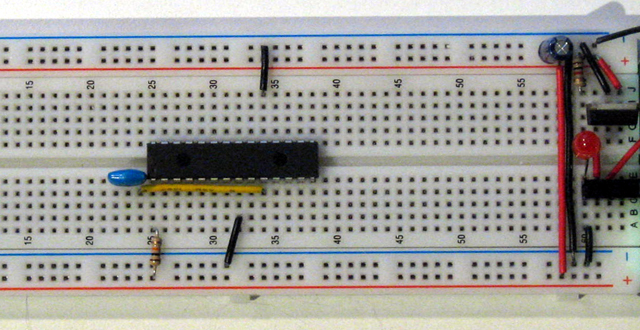

When it is completed it should look like this:
