Introduction to PIC programming.
Building a power supply
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14

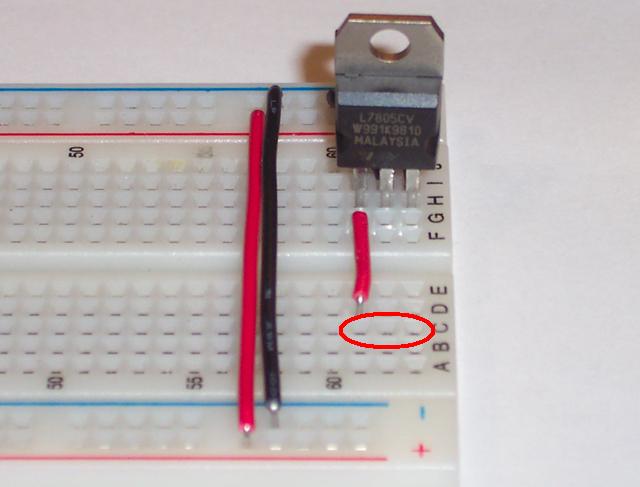

Locate the switch and insert it into the holes cicled below.

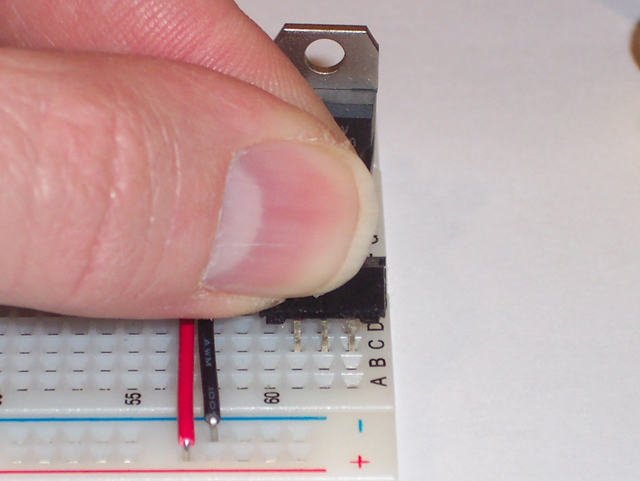

Take care inserting the pins in the correct holes since the switch is much wider than the span of its pins.

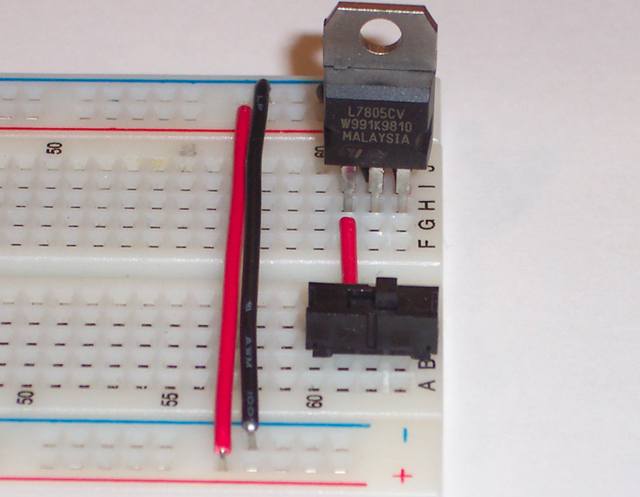

When it is completed it should look like this:
