Introduction to PIC programming.
Building a power supply
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14


Locate a 22uF Capacitor. If you don't have one, get something around 10-20uF. Look carefully on the side for the identification. Place the Capacitor in these two holes with the side with the gray stripe (-) connected to the negative (Blue) buss.

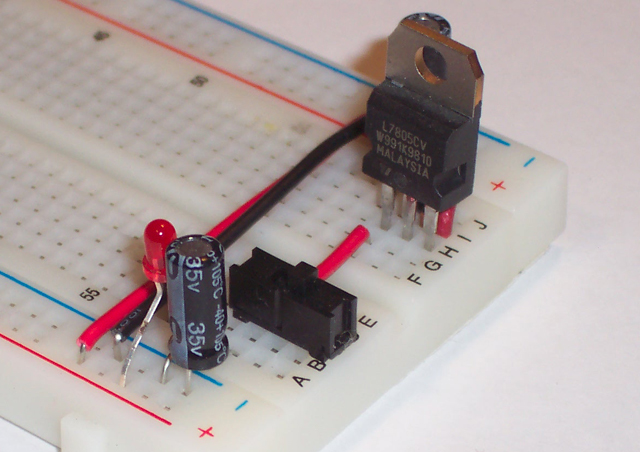

When complete it should look something like this:
