Introduction to PIC programming.
8 LEDs
Home Previous Chapter Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14

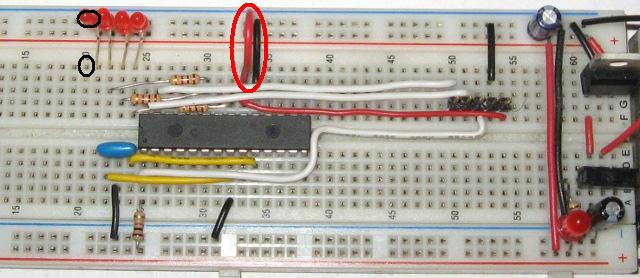

Get ready by first removing the red loop of wire connected to column 33 and locate a new LED and place it in the circled holes. Be sure again to have the flat side of the LED in the negative buss.

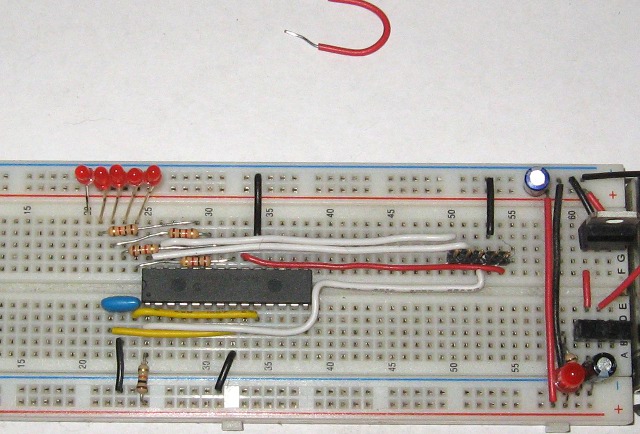

When it is completed it should look like this:
