Chapter 3 Page 7
Introduction to PIC programming.
3 more LEDs
Home Previous Chapter Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8


Locate a 1K resistor (brown, black, red). Insert the resistor into the circled holes connecting column 29 to the LED.

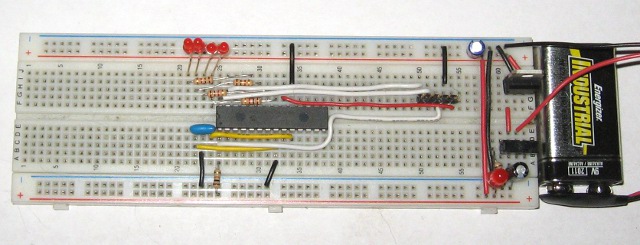

When it is completed it should look like this. Notice the red power wire is removed:
