Shivang Patel

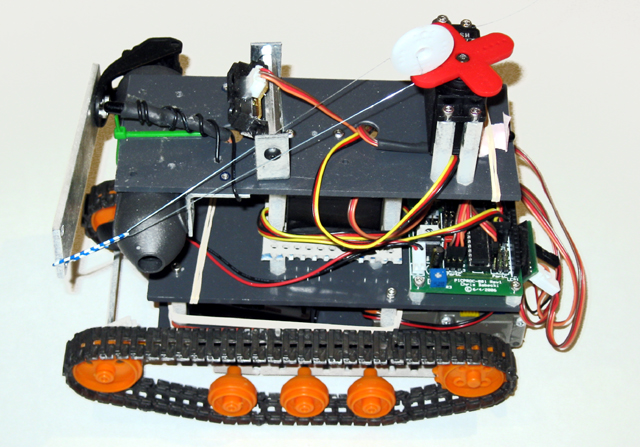

Side veiw of Shivang's Fire Fighting Robot.

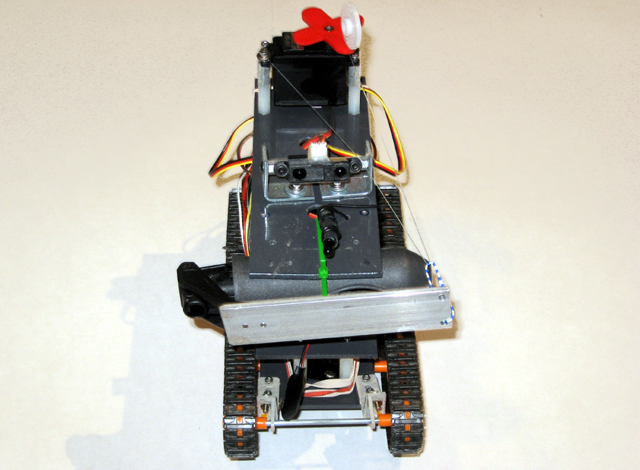

Flames death view of Shivang's Fire Fighting Robot.
Material List
  • (1) PicProc Board and PIC16F876
  • (2) Hitec HS-311 Servo
  • (1) Sharp Sensor
  • (1) Mini Motor Driver
  • (6) Molex Cable
  • (1) 4 AA Battery case
  • (1) 9 V Battery case
  • (4) IR Photo Transistor
  • (4) 39K Resistor
  • (6) Misc Molex ends and pins
  • (1) CO2 Duster
  • (1) Tamiya 4 speed Gear Box
  • (1) Universal Plate Set
  • (1) Universal Arm Set
  • (1) Track and Wheel Set
  • (1) Universal Plate Set
  • (8) 1.25" Standoffs (92745A327)
  • (2) 1.50" Standoffs (92745A328)
  • (6) 0.75" Standoffs (92745A324)
  • (4) 0.25" Standoffs (92745A320)
  • (2) Angle Braces (1556A24)
  • Misc screws and hardware
    		•



    Go see my code!
